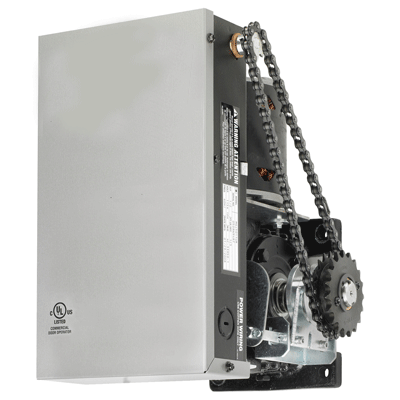

Alpine®
Redi-Midget®
Gear Reduced Jackshaft Door Operator
FEATURES AND CHARACTERISTICS
ELECTRICAL FEATURES
»UL listed.
»High starting torque motor is
removable without affecting the
limit switch settings.
»Full overload protection.
»Low voltage control circuit,
24 VAC.
»Factory pre-wired with all
electrical components in a
NEMA 1 enclosure.
»Dual relay system with a 3 button,
NEMA 1 control
station included.
MECHANICAL FEATURES
»For use on small rolling
grilles and counter shutters
where manual chain hoist is
not required.
»Heavy duty #41 roller chain
and drive sprocket enhances
the final drive.
»Heavy-duty wormgear reducer.
»Combination adjustable
torque limiting clutch and
manual disconnect.
»Positive chain driven rotary
limit switches.
»Single phase motor with
instant reverse and internal
automatic reset thermal overload.
Contact
us today to find out which Alpine® solution
is right for you!
|
A SUPERB
CHOICE
FOR
OPERATION
OF
SMALL
GRILLES
AND
SHUTTERS
WHERE
MANUAL
CHAIN
HOIST
IS NOT
REQUIRED |
