Alpine®
Redi-Robot®

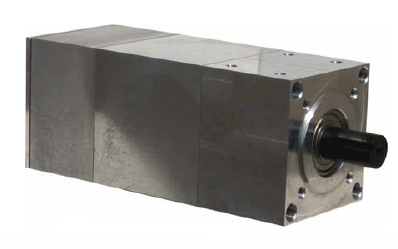

GEAR Motor and Control Panel
FEATURES AND CHARACTERISTICS
FEATURES
»High quality advanced brushless servo motor technology
»Unique features, built to work with adaptive controller system
»High energy density, compact package
»Planetary gear for high efficiency and high reliability
»Double shielded, precision stainless steel ball bearings
»NEMA 4 GearMotor
BENEFITS
»Compact gear motor and control module
»Back drivable without disconnect
»Light weight; 15 to 18 lbs
»Simple mechanical installation
»Advanced DC brushless servo motor system
»Electronic overload protection (no mechanical clutch required)
»Polarized connectors for easy installation and maintenance
POWER & TORQUE
»Family of models to choose from for various door styles and weights
»Output torques 70 in. lb. to 400 in. lb.
»Output shaft speeds from 70 to 350 RPM
»Proper choice of sprocket ratio gives required door speed with high
pulling power (torque)
»Battery backup capable with an Adaptive Controller System for
up to hundreds of door cycles
MECHANICAL
»Output shaft; 1” Diameter with keyway
»Simple to use 4-hole mounting
»Capable of side or front mounting with four bolts
»Left or right mounting (programmable opening direction)
»High reliability, precision components
OPTIONS
»Electrically operated programmable failsafe brake
»Continuous system operation on battery power during loss of AC
power (Includes intelligent battery charging with Adaptive
Controller System)
»Chain wheel with engage/disengage for manual door operation
»Mounting bracket
RELIABILITY
»High quality brushless servo motor
»Double shielded, precision stainless steel ball bearings
»Environment; -20 deg. C to +50 deg. C;
operates at lower temperatures with heating strips
