Alpine® Redi-Tube®

Tubular Motor with Built-In Manual Handcrank Overdirve

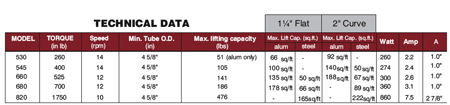

FEATURES AND CHARACTERISTICS


SERIES 500 (530, 545)
»Used on small rolling grilles and counter shutters where a manual chain hoist is not required.
»115V, 60 Hz, single phase.
»Limit switch capacity: 28/40 revolutions.
»Maximum continuous running time: 4 minutes on a light duty cycle.

SERIES 600 (660/680)
»Used on small rolling grilles and counter shutters.
»115 V, 60 Hz, single phase.
»Limit switch capacity: 24 revolutions.
»Maximum continuous running time: 4 minutes on a light duty cycle.


SERIES 800 (820)
»Used on small rolling grilles and counter shutters.
»115 v, 60 Hz, single phase.
»Limit switch capacity: 13 revolutions.
»Maximum continuous running time: 4 minutes on a light duty cycle.



Contact us today to find out which Alpine® solution is right for you!




AN IDEAL

CHOICE

FOR

OPERATION

OF


SMALL

GRILLES

AND


SHUTTERS
