   Alpine®
Auto Fire-Tite®
IMB
Advanced
Insulated Fire Door
 IMB
V7 Insulated and Vibration Resistant
and has Autoset fire. - Advanced Rolldown Auto-set Fire Door
at a Competitive Price
- Optional Internal Flame Baffle
Prevents Infiltration Thru Header
- Approved for Roll down Stainless Steel
Fire Doors
- Certificate up to 56'x30'
- Built in Accordance with Requirements
Specified by Underwriter's Laboratories
Inc.
 |
Available
Classifications:
3 or 4 Hour Approved for Auto-set fire rolldown fire Doors in Dividing Fire Walls with Openings not Exceeding
152 sq. ft. in area. • 1.5 Hour Approved for Doors, in Vertical Shaft Openings
not Exceeding 152 sq. ft. in area. • .75 Hour Approved for Doors in Corridor
or Room-Partition Opening not Exceeding 152 sq. ft. in area. • 1.5 Hour
Approved for roll down Doors in Exterior Wall Opening not Exceeding 152 sq. ft. in area. |
The

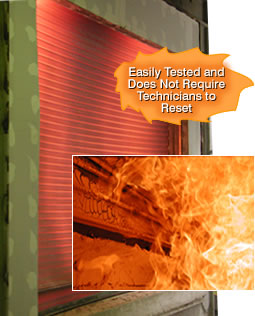

Auto Fire-Tite® IMBs rolldown fire door has the same features
as the Fire-Tite® IMB with controlled automatic
closing by one of Alpine’s
Redi-Reset Motor hand chain or crank options.
The Auto Fire-Tite®
IMB can be connected to smoke detectors
and fire alarms as well as any building
alarms. The Redi-Reset operators eliminate
the complication of a manual reset
of the door after drop testing or activation.
The Auto Fire-Tite® IMB is also
labeled for up to 4 hours of fire protection
by UL and NYC MEA.
Auto Fire-Tite® IMB curtains come with Autoset fire and are constructed
of galvanized steel and can be finished
with powder coating or baked enamel finishes.
The metal on metal insulated slats
have a 7/8" foamed-in-place urethane core
which bonds the metal skin and strengthens
the slat. Each door is equipped with a
22 gage steel hood formed to fit the contour
of the end brackets. Durable ductile iron
endlocks with 1/4" semi-solid
rivets. Our door supports
and brackets are all steel plates no
less than 1/4" thick.
Alpine's Torsion Counterbalance Assembly
is state of the art, providing maximum
security and ease of use.
APPLICATION USE
Insulated, Fire Protection.
BOTTOM BARS
Galvanized, Stainless Steel, Hot Rolled Steel, Powder Coated, Strip Seal, Pneumatic Edge, Electric
Edge, Wireless Edge, Double Angle, Slide Lock.
BRACKET PLATES
Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Internal Charge, Charge Wheel,
Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Hex Bracket,
Single Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Life Cycle 15M, Cycle 17.5 to 400M,
Welded Tabs, Taped Holes, Inside Charge, Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized, Stainless Steel, Prime Painted Galvanized, Powder Coated, Stamped
Endlock, Cast Endlocks, Windlock Option, Brass End Lock.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, Structural Angles, Roll Formed
Angles, Weather Stripping, Brush/Smoke Seal, Chain Lock Box, Electric Interlock, Tube Mounting,
Pack Out Angle.
HOOD/COVER
Galvanized, Stainless Steel, Prime Painted, Powder Coated, Flame Baffle, Lintel Seal,
Smoke Lintel Seal, Back Fascia, Tension Cover, Operator Cover, Round, Square, Hex, Side End
Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge,18 Guage.
OPERATION OF DOOR
Chain, Motor, Hand Crank, Redi-Reset Chain II, Grifco Chain, Redi-Reset Chain, Redi-Reset Crank,
FDC Operator, FDCL Operator, Reset MM Operator.
Auto Fire-Tite IMB rolldown fire door has Autoset fire and is insulated against the elements. The auto-set fire for this roll down is economical.
Contact
us today to find out which Alpine® solution
is right for you! |
| Powder
Coating |
 |
|
 Our
large selection of colors
make our doors decorative
and durable.
|
| Standard
Colors |
| View | Download |
| Special
Effects |
| View | Download |
|
|
|
IMB
Curtain Detail
|
|
|
Double
Angle Bottom Bar
|
|
|
Structural Guides
|
|
