Alpine®
Econo Serv-Dawn®
Economy
Torsion Spring Doors
- High Quality, Space Saving
Solution at an Affordable Price
- Provides Security Against Theft
and Vandalism
- Available in a Variety of Materials
Including Galvanized, Prime Painted,
Stainless Steel, and Aluminum
|
 |
Alpine's

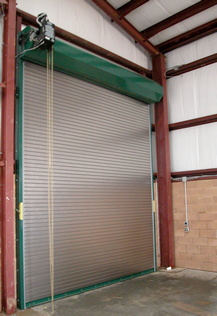

Econo Serv-Dawn® Industrial Service Doors
are the economic solution
for security against theft, weather,
damage, and other applications. No
matter how large or small the job,
or how unusual the application, Alpine
has a service door that meets your
individual specifications. Econo Serv-Dawn®
Doors are available in both primed
and galvanized steel.
Alpine Econo Serv-Dawn® curtains come in 4" curved
interlocking slat designs. Doors can
be manually, crank, hand-chain or motor
operated. All operators can be adapted
to specific conditions. Locking units
can be provided depending on the type
of door operation.
APPLICATION USE
Store Front Door, Office Window.
BOTTOM BARS
Galvanized, Hot Rolled Steel, Powder Coated, Pneumatic Edge, Electric Edge, Wireless Edge,
Single Angle, Double Angle, Extruded “T”, Slope Bar, Curb Closure Plate, Special Cut-out, Slide
Lock.
BRACKET PLATES
Hot Rolled A36, Powder Coated, Stop Lock Bearing, Internal Charge, Charge Wheel, Motor Prep.,
Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Hex Bracket, Single Gear
Reducer, Double Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Torsion Spring, Life Cycle 10M, Life cycle 15M, Life Cycle 17.5 to
400M, Collars, Welded Tabs, Taped Holes, Redi-Tube Motor, Thru-Shaft Pushup, Inside Charge,
Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized, Prime Painted Galvanized, Powder Coated, Fenestrated, Mail Slot, Vision Lite, Stamped
Endlock, Cast Endlocks.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, Roll Formed Angles, Roll
Formed Guides, Chain Lock Box, Pin Locks, Loc-Tite Locks, Electric Interlock, Teflon
Lining, Tube Mounting, Pack Out Angle, Flat Plate Mount.
HOOD/COVER
Galvanized, Prime Painted, Powder Coated, Back
Fascia, Tension Cover, Operator Cover, Square,
Hex, Side End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge, 18 Gauge.
OPERATION OF DOOR
Push-up, Chain, Motor, Hand Crank, Redi-Master, Redi-Hoist, Redi-Lift, Redi-Tube, Chain Gear
Reducer, Euro-Drive,
Contact
us today to find out which Alpine® solution
is right for you!
Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.
|
| Powder
Coating |
 |
|
Our
large selection of colors
make our doors decorative
and durable.
|
| Standard
Colors |
| View | Download |
| Special
Effects |
| View | Download |
|
|
|
4" Curve
|
|
|
Single
Angle Bottom Bar
|
|
|
Roll-Formed Guides
|
|
