Alpine®
Fire-Shut®
Traditionally
Designed

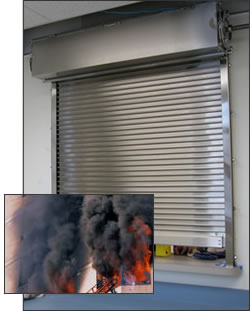

Counter Fire Door
- Fire Rated Counter Shutter; U.L.
Classified to 3 Hours of Protection
- Ideal For All Pass-Thru Openings
Such as Service Counters, Concession
Stands and Cafeteria Counters.
- Fire Shutter Coils Upward Requiring
Little Side or Head Room.
- Built in Accordance with Requirements
Specified by Underwriter's Laboratories
Inc.
|
3 Hour
Approved for Doors in Dividing Fire Walls
with Openings
not Exceeding 120 sq. ft. in area. • 1.5
Hour Approved for Doors, in Vertical Shaft
Openings not Exceeding 120 sq. ft. in area. • .75
Hour Approved for Doors in Corridor or
Room-Partition Opening not Exceeding 120
sq. ft. in area. • 1.5
Hour Approved for Doors in Exterior Wall
Opening not Exceeding 120 sq. ft. in area.
Alpine Fire-Shut® Fire Shutters
are engineered and constructed to combine
fire protection and service. Practically
designed for small pass-thru openings
such as service counters, windows,
concession stands and cafeteria counters.
The interlocking steel,
stainless steel, or prime painted slats
maintains the aesthetic harmony of
any building decor. Most important,
Alpine counter fire shutters provide excellent
protection against fire, theft and
unauthorized entry.
Alpine Fire-Shut® Fire Shutter curtains are available
in either 1 1/4" flat or 2" curved interlocking
slats. Fire shutters can be manually or motor
operated. Operators
can be adapted
to specific conditions. Locking units
can be provided depending on the type
of fire shutter operation.
Click
Here for UL Labeled Smoke and Draft Control Assemblies
Contact
us today to find out which Alpine® solution
is right for you! |
| Powder
Coating |
 |
|
 Our
large selection of colors
make our doors decorative
and durable.
|
| Standard
Colors |
| View | Download |
| Special
Effects |
| View | Download |
|
|
|
1
1/4" Flat or 2" Curved
Slat
|
|
|
Double
Angle Bottom Bar
|
|
|
Formed Guide
|
|
