Alpine®
Insul-Vapor

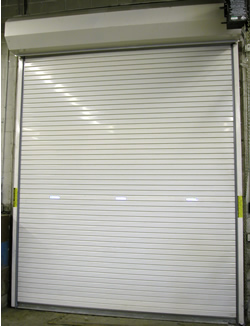

Steel
Front Slat w/PVC Backing
- Specially constructed door for vapor
insulation
- Made with hard, weather resistant PVC
backing
- R-Value of 8.0
- Internal Hood Baffle Prevents Infiltration
Thru Header
- Available for Custom Windload Designs
- Torsion Spring Counterbalance Assembly
|
 |
Alpine introduces
Insul-Vapor® Insulated Slats. This new slat
provides for a full thermal break between the
inside and outside of the slat. The back is made
of hard, weather resistant PVC. The inside provides
a full vapor barrier for thermal protection.
The front slat is available in 22, 20, and 18
gauge steel, or B.S. Aluminum with a variety
of finishes.
Alpine's patented Insul-Vapor® design allows
for the manufacture of a vapor resistant rolling
door that is unmatched in the industry.
Alpine Insul-Vapor® curtains consist of
2 3/4" flat slats, snap on roll formed from
galvanized, optional stainless steel, or aluminum
in gauges from 22 ga. to 18 ga with snap on PVC
and insulated core backing doors can be push-up,
hand-crank, hand-chain or motor operated. All
operators can be adapted to specific conditions.
Locking units can be provided depending on the
type of door operation.
APPLICATION USE
Insulated, Sound Protection, Warehouse Facilities, Storage Buildings, Boating Marina’s.
BOTTOM BARS
Brass, Copper, Galvanized, Aluminum, Stainless Steel, Hot Rolled Steel, Powder Coated, Weather
Strip, Brush/Smoke Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Slide Lock.
BRACKET PLATES
Brass, Copper, Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Stop Lock Bearing,
Internal Charge, Charge Wheel, Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket,
Square Bracket, Hex Bracket, Single Gear Reducer, Double Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel,
Torsion Spring, Life Cycle 17.5 to 400M, Welded
Tabs, Taped Holes, Redi-Tube Motor, Thru-Shaft Push-up, Inside Charge, Lock Shaft Collar, Keyed,
Bolted.
CURTAIN OPTIONS
Brass, Copper, Galvanized, Stainless Steel, Aluminum, Galvalume, Prime Painted Galvanized,
Powder Coated, Stamped Endlock, Cast Endlocks, Windlock Option, Brass Endlock, Teflon Endlock.
GUIDE MATERIAL
Brass, Copper, Hot Rolled A36, Stainless Steel,
Aluminum, Galvanized Steel, Powder Coated, Structural Angles, Roll Formed Angles, Weather
Stripping, Brush/Smoke Seal, Chain Lock Box, Electric Interlock, Heat Tracing, Teflon
Lining, Tube Mounting, Pack Out Angle, Flat Plate Mount.
HOOD/COVER
Brass, Copper, Galvanized, Stainless Steel, Aluminum, Galvalume, Prime Painted, Powder Coated,
Hood Baffle, Lintel Seal, Back Fascia, Tension Cover, Operator Cover, Round, Square, Hex, Side
End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge, 18 Gauge.
OPERATION OF DOOR
Chain, Motor, Hand Crank, Redi-Master, Redi-Lift, Chain Gear Reducer, Euro-Drive.
Contact
us today to find out which Alpine® solution
is right for you!
|
|
| Powder
Coating |
 |
|
Our
large selection of colors make
our doors decorative and durable.
|
| Standard
Colors |
| View | Download |
| Special
Effects |
| View | Download |
|
|
|
IPB-V
Insulated
Snap on Flat Slat
|
|
|
Double
Angle with
Rubber Astragal
|
|
|
Structural
Guide
|
|
