Fire Rated Counter Shutter; U.L. Classified to 3 Hours of Protection- Counter Fire Doors Are Ideal For All Pass-Thru Openings Such as Service Counters, Concession Stands and Cafeteria Counters.
- Shutter Coils Upward Requiring Little Side or Head Room.
- Fire Doors Are Built in Accordance with Requirements Specified by Underwriter’s Laboratories Inc.
3 Hour Approved for Fire Doors in Dividing Fire Walls with Openings not Exceeding 152 sq. ft. in area. • 1.5 Hour Approved for Doors, in Vertical Shaft Openings not Exceeding 152 sq. ft. in area. • .75 Hour Approved for Doors in Corridor or Room-Partition Opening not Exceeding 152 sq. ft. in area. • 1.5 Hour Approved for Doors in Exterior Wall Opening not Exceeding 120 sq. ft. in area.

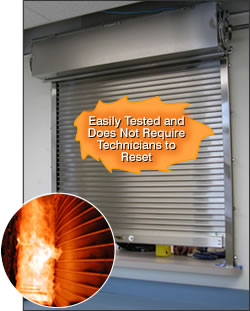

The Auto Fire-Shut® counter fire doors have the same features as the Fire-Shut® with controlled automatic closing by one of Alpine’s Redi-Reset® Motors, hand chain or hand crank options. The Auto Fire-Shut® fire door can be connected to smoke detectors and fire alarms as well as any building alarms. The Redi-Reset® operators eliminate the complication of a manual reset of the door after drop testing or activation. The Auto Fire-Shut® fire door is also labeled for up to 3 hours of fire protection by UL and NYC MEA approved.
Alpine Auto Fire-Shut® curtains are available in either 1 1/4″ flat or 2″ curved interlocking slats. Shutters can be manually or motor operated. Operators can be adapted to specific conditions. Locking counter fire doors can be provided depending on the type of shutter operation.
APPLICATION USE
Fire Protection, Counter Fire, Counter Shutter, Cafeteria’s, Medical Facilities, Office Windows.
BOTTOM BARS
Galvanized, Stainless Steel, Hot Rolled Steel, Powder Coated, Strip Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Tubular, Slide Lock.
BRACKET PLATES
Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Internal Charge, Charge Wheel, Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Hex Bracket, Single Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Life Cycle 10M, Life Cycle 15M, Cycle 17.5 to 400M, Welded Tabs, Taped Holes, Inside Charge, Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized, Stainless Steel, Prime Painted Galvanized, Powder Coated, Stamped Endlock, Cast Endlocks, Windlock Option.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, Roll Formed Angles, “G” Shutter Guide, Chain Lock Box, Electric Interlock, Tube Mounting.
HOOD/COVER
Galvanized, Stainless Steel, Prime Painted, Powder Coated, Flame Baffle, Lintel Seal, Smoke Lintel Seal, Back Fascia, Tension Cover, Operator Cover, Round, Square, Side End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge,18 Guage.
OPERATION OF DOOR
Chain, Motor, Hand Crank, Redi-Reset Chain II, Grifco Chain, Redi-Reset Chain, Redi-Reset Crank, FDC Operator, FDCL Operator, Reset MM Operator.
