Advanced Roll Down Fire Door at a Competitive Price. With Redi-Reset- Optional Internal Flame Baffle Prevents Infiltration Thru Header
- Approved for Stainless Steel Fire Doors
- Certificate up to 56′x30′
Fire Doors Built in Accordance with Requirements Specified by Underwriter’s Laboratories Inc
Available Classifications:
3 and 4 Hour Approved for Auto-set Roll Down fire Doors in Dividing Fire Walls with Openings not Exceeding 152 sq. ft. in area. • 1.5 Hour Approved for Fire Doors, in Vertical Shaft Openings not Exceeding 152 sq. ft. in area. • .75 Hour Approved for Doors in Corridor or Room-Partition Opening not Exceeding 152 sq. ft. in area. • 1.5 Hour Approved for roll down Doors in Exterior Wall Opening not Exceeding 152 sq. ft. in area.

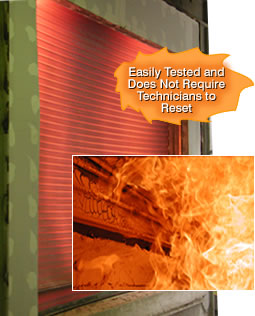

The Auto Fire-Tite® roll down fire door has the same features as the Fire-Tite® fire door with controlled automatic closing by one of Alpine’s Redi-Reset® Motor, hand chain or hand crank options. The Redi-Reset fire feature saves time. The Auto Fire-Tite® can be connected to smoke detectors and fire alarms as well as any building alarms. The Redi-Reset® options eliminate the complication of a manual reset of the door after drop testing or activation. The Auto Fire-Tite® is also labeled for up to 4 hours of fire protection by UL, FM, and NYC MEA. The Auto-set fire feature is convenient and easy to use.
Auto Fire-Tite® curtains are constructed of galvanized or stainless steel in 2 3/4″ flat and 3″ curve slats, and can be finished with powder coating or baked enamel finishes. Each smoke door is equipped with a 22 gauge steel hood formed to fit the contour of the end brackets. Durable ductile iron endlocks with 1/4″ semi-solid rivets. Our fire and smoke door supports and brackets are all steel plates no less than 1/4″ thick. Alpine’s Torsion Counterbalance Assembly is state of the art, providing maximum security and ease of Redi-Reset fire use.
APPLICATION USE
Fire Protection.
BOTTOM BARS
Galvanized, Stainless Steel, Hot Rolled Steel, Powder Coated, Strip Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Slide Lock.
BRACKET PLATES
Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Charge Wheel, Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Hex Bracket, Single Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Life Cycle 10M, Life Cycle 15M, Cycle 17.5 to 400M, Collars, Taped Holes, Inside Charge, Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized, Stainless Steel, Prime Painted Galvanized, Powder Coated, Stamped Endlock, Cast Endlocks, Windlock Option, Brass End Lock.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, Structural Angles, Roll Formed Angles, Chain Lock Box, Electric Interlock, Tube Mounting, Pack Out Angle.
HOOD/COVER
Galvanized, Stainless Steel, Prime Painted, Powder Coated, Flame Baffle, Lintel Seal, Smoke Lintel Seal, Back Fascia, Tension Cover, Operator Cover, Round, Square, Hex, Side End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge, 18 Guage, 16 Gauge.
OPERATION OF DOOR
Chain, Motor, Hand Crank, Redi-Reset Chain II, Grifco Chain, Redi-Reset Chain, Redi-Reset Crank, FDC Operator, FDCL Operator, Reset MM Operator.
Auto Fire-Tite autoset fire rolldown fire door is durable and easily fire drop tested. The Auto-set fire feature saves time and worry. For your window needs please see our roll down fire shutters.
