Rolling Counter Shutters Accent and Enhance Building Decor- Available in a Variety of Finishes
- Counter Shutters fit new and existing openings up to 86 sq.ft.
- Labels : UL 1 ½ or ¾ hour.
- Fire Doors Customized to Fit Your Wall Thickness
- Split Frame Doors are Ideal for Cafeterias, Health Care Facilities, Schools & Universities, etc.
Breakthrough Design for Easy Installation!

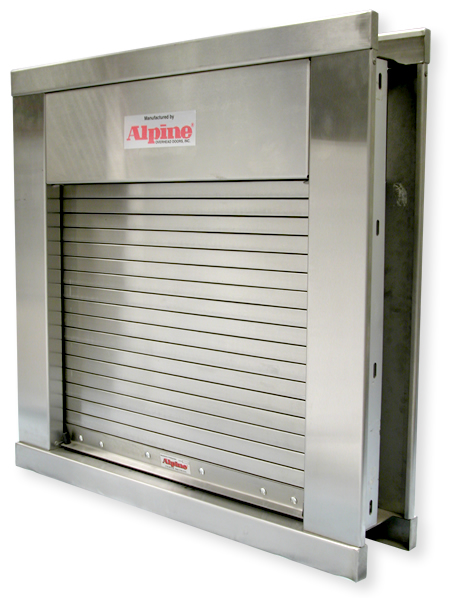

Alpine’s UL Classified Integral Frame® Shutter is manufactured and designed at the factory for a seamless, custom appearance without requiring assembly in the field. This counter shutter features our special Split Frame® door design for quick installation into new walls or existing openings with a finished frame edge. Built-in mounted units wrap around the wall and are installed while the wall is being constructed. Split Frame door units are set into finished walls. No costly, time-consuming finishing with sheet rock, masonry or carpentry is needed. Available face of wall ( Maximum width 10′ 2″ and maximum height 5′ 0″ or Maximum 51 Sq. Ft.) and between Jamb ( Maximum width 10′ 10″ and height 6′ 4″ or Maximum 86 Sq. Ft.).
Finishes include stainless steel or powder-coated to match any design scheme.
Additional Benefits:
- Fully assembled prior to pick-up or delivery to the project site. Ready for placement into the wall opening.
- A custom looking finished product with high quality design.
APPLICATION USE
Fire Protection, Integral Shutter, Counter Shutter, Cafeteria’s, Educational and Healthcare Facilities.
BOTTOM BARS
Galvanized, Stainless Steel, Hot Rolled Steel, Powder Coated, Weather Strip, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Tubular, Slide Lock.
BRACKET PLATES
Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Oscillating Governor, Fire Drop Charge, Charge Wheel, Motor Prep., Chain Gearing, Square Bracket.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Kicker, Life Cycle 40 to 400M, Welded Tabs, Taped Holes, Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized, Stainless Steel, Galvalume, Prime Painted Galvanized, Powder Coated, Stamped Endlock, Cast Endlocks.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated.
HOOD/COVER
Galvanized, Stainless Steel, Prime Painted, Powder Coated, Back Fascia, Tension Cover, Operator Cover, Square, Side End Cap, Motor Cover, F.O.C. Cover.
OPERATION OF DOOR
Push-up, Motor, Hand Crank, Redi-Midget, Redi-Release.
