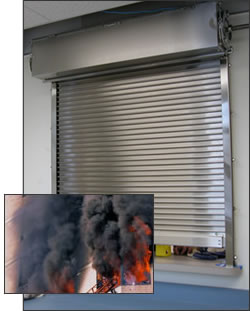

Fire Rated Counter Shutter; U.L. Classified to 3 Hours of Protection Rolling Shutters- Fire Shutters Are Ideal For All Pass-Thru Openings Such as Service Counters, Concession Stands and Cafeteria Counters.
- Fire Shutter Coils Upward Requiring Little Side or Head Room.
- Built in Accordance with Requirements Specified by Underwriter’s Laboratories Inc.
3 Hour Approved for rolling fire shutters and rolling fire Doors in Dividing Fire Walls with Openings not Exceeding 152 sq. ft. in area. • 1.5 Hour Approved for Doors, in Vertical Shaft Openings not Exceeding 152 sq. ft. in area. • .75 Hour Approved for Doors in Corridor or Room-Partition Opening not Exceeding 120 sq. ft. in area. • 1.5 Hour Approved for Doors in Exterior Wall Opening not Exceeding 152 sq. ft. in area.
Alpine Fire-Shut® Rolling Shutters are engineered and constructed to combine fire protection and service. Practically designed for small pass-thru openings such as service counters, windows, concession stands and cafeteria counters. The interlocking steel, stainless steel, or prime painted slats maintain the aesthetic harmony of any building decor. Most important, Alpine counter fire shutters provide excellent protection against fire, theft and unauthorized entry.
Alpine Fire-Shut® curtains are available in either 1 1/4″ flat or 2″ curved interlocking slats. Shutters can be manually or motor operated. Operators can be adapted to specific conditions. Locking fire shutters and fire doors can be provided depending on the type of shutter operation. To see our line of rolling fire doors click here.
APPLICATION USE
Fire Protection, Counter Fire, Counter Shutter, Office Window’s, Healthcare Facilities, Cafeteria’s.
BOTTOM BARS
Galvanized, Stainless Steel, Hot Rolled Steel, Powder Coated, Strip Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Tubular, Slide Lock.
BRACKET PLATES
Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Viscous Governor, Oscillating Governor, Fire Drop Charge, Charge Wheel, Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Single Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Kicker, Cycle 17.5 to 400M, Welded Tabs, Taped Holes, Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized Steel, Stainless Steel, Prime Painted Galvanized, Powder Coated, Stamped Endlock, Cast Endlocks, Windlock Option.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, ”G” Shutter Guide, Chain Lock Box, Electric Interlock, Tube Mounting.
HOOD/COVER
Galvanized, Stainless Steel, Prime Painted, Powder Coated, Flame Baffle, Lintel Seal, Smoke Lintel Seal, Tension Cover, Operator Cover, Back Fascia, Round, Square, Side End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge.
OPERATION OF DOOR
Push-up, Motor, Hand Crank, Redi-Lift, Redi-Midget, Redi-Release.
The Fire-Shut rolling fire shutters make windows safer. For non fire doors see our rolling shutters. Click here for our line of rolling fire doors.
Click Here for UL Labeled Smoke and Draft Control Assemblies
