Fire Rated Counter Shutter; U.L. Classified to 3 Hours of Protection- Ideal For All Pass-Thru Openings Such as Service Counters, Concession Stands and Cafeteria Counters.
- Shutter Coils Upward Requiring Little Side or Head Room.
- Built in Accordance with Requirements Specified by Underwriter’s Laboratories Inc.
3 Hour Approved for Doors in Dividing Fire Walls with Openings not Exceeding 120 sq. ft. in area. • 1.5 Hour Approved for Doors, in Vertical Shaft Openings not Exceeding 120 sq. ft. in area. • .75 Hour Approved for Doors in Corridor or Room-Partition Opening not Exceeding 120 sq. ft. in area. • 1.5 Hour Approved for Doors in Exterior Wall Opening not Exceeding 120 sq. ft. in area.
The Alpine Smoke Fire-Shut® has all the features of the Fire-Shut® with the addition of an “S” rating for smoke leakage. The Smoke Fire-Shut® utilizes a vinyl smoke seal on the bottom bar and brush seals on the guides and lintel to stop the movement of smoke through the door, preventing property damage and health risks.

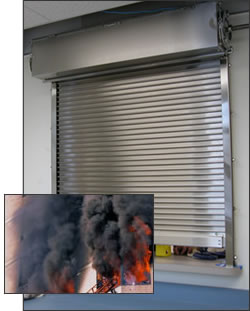

Alpine Smoke Fire-Shut® Shutters are engineered and constructed to combine fire protection and service. Practically designed for small pass-thru openings such as service counters, windows, concession stands and cafeteria counters. The interlocking flat faced steel, stainless steel, or prime painted slats maintains the aesthetic harmony of any building decor. Most important, Alpine counter shutters provide excellent protection against fire, theft and unauthorized entry.
Alpine Smoke Fire-Shut® curtains are available in 1 1/4″ flat interlocking slats. Shutters can be manually or motor operated. Operators can be adapted to specific conditions. Locking units can be provided depending on the type of shutter operation.
APPLICATION USE
Fire Protection, Counter Fire, Smoke Control, Counter Shutter, School Cafeteria’s, Office Window’s
BOTTOM BARS
Galvanized, Stainless Steel, Hot Rolled Steel, Powder Coated, Strip Seal, Brush/Smoke Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Tubular, Slide Lock.
BRACKET PLATES
Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Charge Wheel, Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Hex Bracket, Single Gear Reducer.
COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Life Cycle 10M, Life Cycle 15M, Cycle 17.5 to 400M, Welded Tabs, Taped Holes, Inside Charge, Lock Shaft Collar, Keyed, Bolted.
CURTAIN OPTIONS
Galvanized, Stainless Steel, Prime Painted Galvanized, Powder Coated, Stamped Endlock, Cast Endlocks, Windlock Option.
GUIDE MATERIAL
Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, Roll Formed Angles, “G” Shutter Guide, Brush/Smoke Seal, Chain Lock Box, Electric Interlock, Tube Mounting.
HOOD/COVER
Galvanized, Stainless Steel, Prime Painted, Powder Coated, Flame Baffle, Lintel Seal, Smoke Lintel Seal, Back Fascia, Tension Cover, Operator Cover, Round, Square, Side End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.
MATERIAL STYLE
22 Gauge, 20 Gauge,18 Guage.
OPERATION OF DOOR
Push-Up, Motor, Hand Crank, Chain GR Reducer, Redi-Release.
