Alpine® Redi-Robot®

GEAR Motor and Control Panel

RR-IPB-4

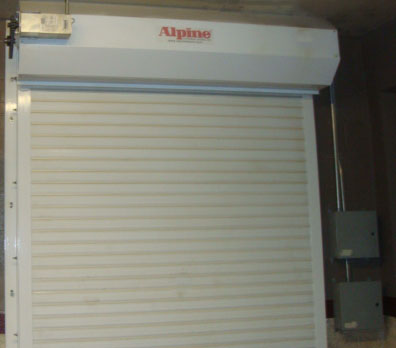

RR-IPB-3

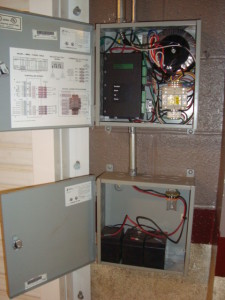

DSC00076











FEATURES AND CHARACTERISTICS  click here for more motor operators

FEATURES OF THE BRUSHLESS MOTORS

»High quality advanced brushless servo motor technology
»This door opener has unique features, built to work with adaptive controller system
»High energy density, compact package
»Planetary gear for high efficiency and high reliability
»Double shielded, precision stainless steel ball bearings
»NEMA 4 GearMotor

BENEFITS OF MOTOR OPERATORS

»Compact gear motor and control module
»Back drivable without disconnect
»Light weight; 15 to 18 lbs
»Simple mechanical installation
»Advanced DC brushless servo motor system
»Electronic overload protection (no mechanical clutch required)
»Polarized connectors for easy installation and maintenance

POWER & TORQUE OF THIS DOOR OPENER

»Family of models to choose from for various door styles and weights
»Output torques 70 in. lb. to 400 in. lb.
»Output shaft speeds from 70 to 350 RPM
»Proper choice of sprocket ratio gives required door speed with high
pulling power (torque)
»These brushless motors have battery backup capable with an Adaptive Controller System for up to hundreds of door cycles

MECHANICAL

»Output shaft; 1” Diameter with key way
»These motor operators have simple to use 4-hole mounting
»Capable of side or front mounting with four bolts
»Left or right mounting (programmable opening direction)
»High reliability, precision components

OPTIONS FOR BRUSHLESS MOTORS

»Electrically operated programmable fail-safe brake
»Continuous system operation on battery power during loss of AC power (Includes intelligent battery charging with Adaptive Controller System)
»Chain wheel with engage/disengage for manual door operation
»Mounting bracket

RELIABILITY OF MOTOR OPERATORS

»High quality brushless servo motor
»Double shielded, precision stainless steel ball bearings
»The door opener environment; -20 deg. C to +50 deg. C; operates at lower temperatures with heating strips

Operator Catalog

Brushless Motors, Motor Operators, Door Opener - Redi-Robot

A HIGH

QUALITY

ADVANCED

BRUSHLESS

SERVO

MOTOR

TECHNOLOGY

CALL FOR DETAILS
631-473-9300

Contact us today to find out which Alpine® solution is right for you!
