Redi-Form Steel Rolling Door Parts
Note: Rolling Doors Parts can vary based on your door. |
 |
Flat Slat
|
Perforated
|
Drawing
|
Counter Shutter parts, 1-1/4" Flat slat or perforated slats.
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |

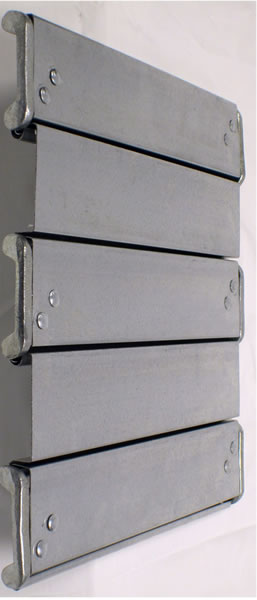

Flat Slat
|
Perforated
|
Drawing
|
Coiling Door Parts, 2-3/4" Flat slat or perforated slats.
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |
Curved Slat
|
Not available with perforation |
Drawing
 |
Rolling Door parts, 2" Curved slats.
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |

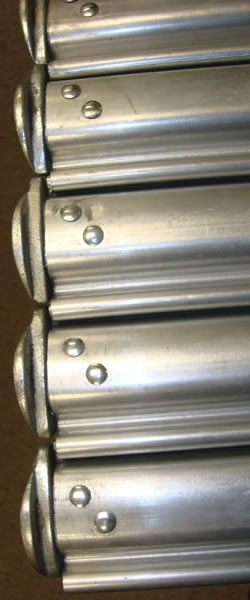

Curved Slat
|
Perforated
|
Drawing
|
Rolling Door part, 3" Curved slat or perforated slats.
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |

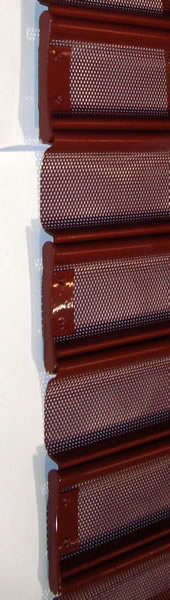

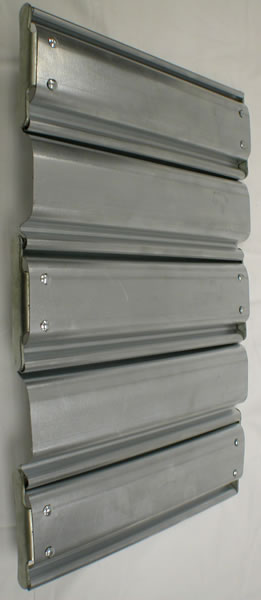

Curved Slat
|
Perforated
 |
Drawing
|
Rolling Gate part, 4" Curved slat or perforated slats.
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |
Curved Slat
|
Not available with perforation |
Drawing
|
Dock Port Parts(Comparable to Model Titan Slats,Doc Port Slats), 6" Curved slats.
Available in galvanized steel prime painted or powder coated with a color of your choice. |
IMB-V7 with
insulation
 |
Without insulation
 |
Drawing
 |
Coiling Door part, IMB-V7 slats.
Available with or without insulation (polystyrene or styrofoam insulation).
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |

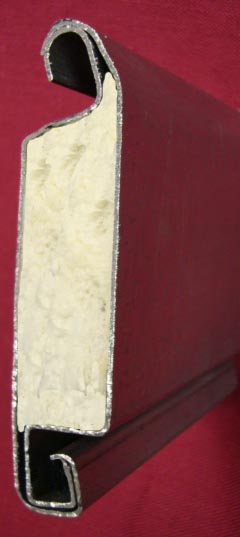

IMB-V5 with insulation
 |
Without insulation
|
Drawing
 |
Insulated Door part, IMB-V5 slats.
Available with or without insulation (polystyrene or styrofoam insulation).
Available in galvanized, aluminum, stainless steel, prime painted or powder coated with a color of your choice. |
Grille Links
 |
Drawing
 |
Rolling Grille Parts, Links can be spaced to your specifications.
Available in aluminum or stainless steel. |

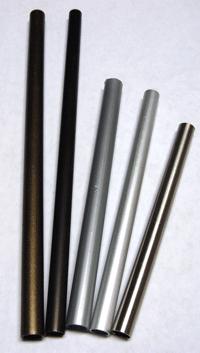

Grille Spacers
 |
Drawing
 |
Rolling Grille Parts, spacer sleeves are available in 6" or 9".
Available in pvc, stainless steel, aluminum, anodized aluminum and galvanized. |
Grille Rods
 |
Drawing
 |
Rolling Grille Parts, Galvanized grille rods |
Bottom Bar
 |
Drawing
 |
Rolling Gate Part, Aluminum extruded bottom bar.
May be prime coated and/or powder coated. |
Hood
|
Drawing |
Coiling Door Part, 15" Sheet metal, Hexagon hood |
| End Bracket |
|
15" Stamped end brackets. |
Roll Formed Track
 |
Drawing
 |
Galvanized roll-formed track. |
Roll Formed Angles
 |
Drawing
|
Galvanized roll-formed guide angles. |

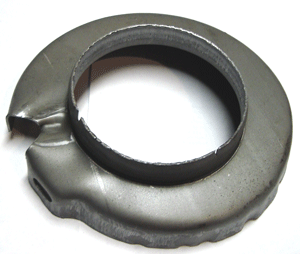

Collar
|
Drawing
 |
8" Cold rolled patented steel stamped collars. |
Torsion Spring
|
Drawing
 |
Torsions springs are cut to the length you specify. |
Spring Box
|
Drawing
|
8" Spring boxes |
|
| Powder
Coating |
 |
|
 Our
large selection of colors
make
our doors decorative and
durable.
|
| Standard
Colors |
| View | Download |
| Special
Effects |
| View | Download |
|
|
|
|
