Wind-Tite - Full Weather Sealed DoorAlpine® Wind-Tite®

Full Weather seal, Coiling Doors and Service Doors

  • Alpine Wind-Tite Full Weather seal Metal Roll Up Doors
  • Internal Hood Baffle Prevents Weather Infiltration Thru Header
  • Available for Custom Windload Designs
  • Torsion Spring Counterbalance Assembly
Overhead door, Weather sealed door

Alpine's Overhead rolling doors, Wind-Tite® Full Weather seal, Roll Up Rolldown doors, Dock Service Doors provide protection against the harshest weather conditions of Rolling closures. The coling steel internal hood baffle prevents the infiltration of rain, snow, and ice thru the header. Custom designed windload specifications are also available as required.

Alpine Overhead coiling doors, Wind-Tite ® Full Weather, Roll Up Dock Service Door curtains consist of 2 3/4" flat slats. roll formed from galvanized, optional stainless steel, or aluminum in gauges from 22 ga. to 18 ga. Doors can be push-up, hand-crank, hand-chain or motor operated. All operators can be adapted to specific conditions. Locking units can be provided depending on the type of roll up doors operation.

APPLICATION USE

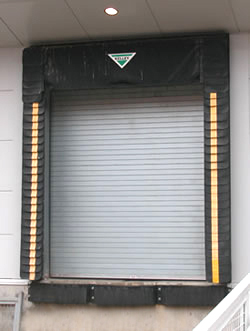

Store Front Door, Loading Dock Doors. Warehouses and Shipping and Receiving Platforms.


BOTTOM BARS
Brass, Copper, Galvanized, Aluminum, Stainless Steel, Hot Rolled Steel, Powder Coated, Weather Strip, Brush/Smoke Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Tubular, Slope Bar, Curb Closure Plate, Special Cut Out, Slide Lock.


BRACKET PLATES
Brass, Copper, Hot Rolled A36, Stainless Steel, Aluminum, Galvanized, Powder Coated, Stop Lock Bearing, Internal Charge, Charge Wheel, Motor Prep., Chain Gearing, Thru-Wall Drop Plate, Round Bracket, Square Bracket, Hex Bracket, Single Gear Reducer, Double Gear Reducer.


COUNTERBALANCE ASSEMBLY
Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Life Cycle 17.5M thru 400M, Collars, Welded Tabs, Taped Holes, Redi-Tube Motor, Thru-Shaft Pushup, Inside Charge, Lock Shaft Collar, Keyed, Bolted, Rolldown Doors have a full balance assembly.


CURTAIN OPTIONS
Brass, Copper, Galvanized, Stainless Steel, Aluminum, Galvalume, Prime Painted Galvanized, Powder Coated, Fenestrated, Mail Slot, Vision Lite, Stamped Endlock, Cast Endlock, Windlock Option, Brass Endlock, Teflon Endlock, Pass Door.


GUIDE MATERIAL
Overhead rolling doors, Metal rolling doors can be made of Brass, Copper, Hot Rolled A36, Stainless Steel, Aluminum, Galvanized Steel, Powder Coated, Structural Angles, Roll Formed Angles, Weather Stripping, Brush/Smoke Seal, Chain Lock Box, Pin Locs, Loc-Tite Locks, Electric Interlock, Heat Tracing, Teflon Lining, Tube Mounting, Pack Out Angle, Flat Plate Mount, Metal roll up doors guides.

HOOD/COVER
Overhead coiling doors Hood/cover can be made of Brass, Copper, Galvanized, Stainless Steel, Aluminum, Galvalume, Prime Painted, Powder Coated, Hood Baffle, Lintel Seal, Back Fascia, Tension Cover, Operator Cover, Round, Square, Hex, Side End Cap, Motor Cover, T.O.C. Cover, F.O.C. Cover, F.O.W. Cover.


MATERIAL STYLE
Metal rollup doors Material can be 22 Gauge, 20 Gauge, 18 Gauge.


OPERATION OF DOOR
Rolldown doors operation, Push-up, Chain, Motor, Hand Crank, Redi-Master, Redi-Hoist, Redi-Lift, Chain Gear Reducer, Euro-Drive, rool up doors.



Contact us today to find out which Alpine® solution is right for you!









  Powder Coating

Our large selection of colors make our doors decorative and durable.

Standard Colors
View | Download
Special Effects
View | Download


2 3/4" Flat Slat

2 3/4" Flat Slat
Double Angle with Rubber Astragal
Double Angle with
Rubber Astragal


Structural Guide with Weather Strip

Structural Guide with
Weather Strip
