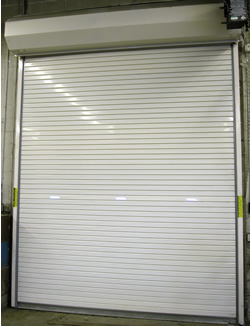

Alpine Insul-Sound®, Soundproof Doors

Soundproof doors, Sound Resistant Door

Product Features

  • Specially constructed insulated soundproof doors
  • Made with hard, weather resistant plastic backing
  • R-Value of 8.0
  • For use in sound stages and recording studios
  • Internal hood baffle prevents weather infiltration through header
  • Available for custom wind load designs
  • Torsion spring counterbalance assembly
Request A Quote

APPLICATION USE
Insulated, sound resistant door protection for use in warehouse facilities, storage buildings, music recording studios as well as many other applications.  These soundproof doors are a primary replacement option for room dividers, side wall doors, side wall stacking doors, sliding doors, and rolling soundproof doors.

BOTTOM BARS
Bottom bars for this soundproof door are available as double angle bottom bars or tubular models fabricated from brass, copper, galvanized, aluminum, stainless steel, hot-rolled steel or powder coated.  Available options include weather strip, brush/smoke seal, pneumatic edge, electric edge, or wireless edge.  Locking devices available on these soundproof doors include slide locks, cylinder locks, or our new cylinder/slide lock combination.

BRACKET PLATES
The bracket plates on these soundproof, sound resistant doors can be brass, copper, hot rolled A36, stainless steel, galvanized, or powder coated.   Optional shapes include square, round, or hexagon.  Available options:  internal charge or external charge wheel, prep for motor, hand chain gearing, interior or exterior operation with a thru-wall drop plate, single or double hand chain gear reduce dependent on door sizes and specifications.  The soundproof door also has an optional stop lock bearing safety feature which prevents the door from free falling in the event that the drive chain breaks.

COUNTERBALANCE ASSEMBLY
The pipe shaft on the soundproof doors are fabricated using seamless black wall pipe A36/ASTM 500, with options for hot-dipped galvanized steel or  stainless steel.  The  life cycle of the torsion spring assembly ranges from 17.5 to 400M based on your required specifications and usage.

CURTAIN OPTIONS
The curtains on the soundproof doors can be fabricated using galvanized steel as a standard with options for stainless steel, aluminum, galvalume, prime painted galvanized steel, or powder coated in house choosing from 188 mfg. standard colors.   (Custom colors and textures are also available.)  An available perforated soundproof curtain with PVC backing for the sound resistant door increases the sound density.  The standard curtain has cast end locks with optional stainless steel or brass stamped end locks.

GUIDE MATERIAL
These soundproof doors come standard with ASTM A36/A529 structural steel guides which can be embedded in the side wall  to create the appearance of a room divider.   Guides are also available in galvanized steel, extruded aluminum, and stainless steel which can all be powder coated.  Optional mounting conditions include face mount, between jamb mount,  tube mount or pack outs which require additional finishing work to maintain the soundproofing quality of this sound resistant door.  Soundproof guide seals and brush/smoke seals are additional available options.

HOOD/COVER
The hood/cover on the soundproof doors is available in round, square or hexagon shapes and are fabricated using galvanized steel as a standard with options for brass, copper, stainless steel, aluminum, galvalume, prime painted, or powder coated.  Drive and charge covers are available in the shapes and material to match the hood.  Back fascias are recommended for certain applications  Additional options for sound resistance include hood baffles, lintel seals, and smoke lintel seals.   Available accessories for the hood covers include motor mounting clips and motor covers.

MATERIAL STYLE
The “Insul-Sound” sound resistant door can be fabricated using steel ranging from 24 gauge through 16 gauge on the front slats with standard white dual durometer PVC on the back slats.   The soundproof quality is achieved using standard polystyrene board with an option for polyurethane foam injection filling.

OPERATION OF DOOR
The sound resistant door and rolling soundproof doors can be operated using hand chain, hand crank, or motor operators including the worm gear Redi-Master operator or a belt-driven Redi-Lift model as appropriate for your application.

Contact us today to find out which Alpine® solution is right for you!

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine® Insul-Sound HP® Rolling Sound Doors

Sound Resistant Rolling Doors

AutoCAD drawings and AutoCAD details for rolling sound doors and room dividers may be selected on the CAD FILES option to the right. Click here to request a quote. The AutoCAD drawings and AutoCAD details for this sound resistant door comply with 08360, 08400 & 08330 construction specifications. For fire doors please select item from the product index.

Insul-Sound HP® rolling sound doors comply with the 08330 construction specifications. This is a specially constructed door for sound insulation with a new type of slat. This new slat provides for a full thermal break between the inside and outside of the slat. This sound resistant door has an R-value of 8.0 and is available for custom wind load designs. For marine doors or wooden counter shutters, please select the item on the product index.

To download details (PDF) for these room dividers, please click below.

Get Adobe Reader for Rolling Sound Doors, Sound Resistant Door, Room Dividers

Face Mounted to Masonry for Rolling Sound Doors, Sound Resistant Door, Room Dividers
Face Mounted to Steel for Rolling Sound Doors, Sound Resistant Door, Room Dividers
Between Jamb Mounted (Packout) for Rolling Sound Doors, Sound Resistant Door, Room Dividers
Between Jamb Mounted for Rolling Sound Doors, Sound Resistant Door, Room Dividers

The Insul-Sound HP® sound resistant door AutoCAD drawings and AutoCAD details are for informational purposes. They may change at any time. The CAD detail and CAD drawing reflect the options that are available to the architects and engineers compiling a drawing to present to contractors.  The AutoCAD detail and AutoCAD drawing will be updated regularly. Alpine’s durable rolling sound doors are unmatched in the industry!

Call Alpine today to find room dividers that are right for you!

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine® Insul-Sound HP® Side Coiling Doors

Sound Resistant Rolling Doors

To download Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors specifications, please click below.

Specifications (PDF) Adobe Acrobat Download 3 Part Specifications (PDF) Side Coiling Doors, Side Coiling Griles, Side Wall Doors, Rolling Doors Get Adobe Reader for Side Coiling Doors, Side Coiling Griles, Side Wall Doors, Rolling Doors
Specifications (DOC) Microsoft Word Download 3 Part Specifications (DOC) for Side Coiling Doors, Side Coiling Griles, Side Wall Doors, Rolling Doors

Model HIGH PERFORMANCE INSUL-SOUND®
Insulated Slats
Insulated Rolling Doors

NOTE: For specifications for Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors, architects must choose from a variety of options. The standard choice for the side wall doors will be shown first in plain text followed by the options shown in [brackets] (Example “Finish: Galvanized [Powder coated] [Baked enamel]”). The specifier must make the appropriate choices for their side wall stacking doors and delete the others (Example: “Finish: Powder coated”).

GENERAL

1.01 SUMMARY of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. This section includes: [Manual] or [Electric] operated High Performance Sound Retardant Door.

1. Cycle life: Design doors of standard construction for normal use of 10,000 cycles standard [up to 400,000 cycles].

2. Design doors to withstand a windload of _____ psf.

B. Related Sections: Related to this section, but not limited to, the following (based on Master Format 2004):

1. Section 01660 – Product Storage and Handling Requirements.

2. Section 04220 – Concrete Unit Masonry.

3. Section 05120 – Structural Steel.

4. Section 06100 – Rough Carpentry.

5. Section 08310 – Access Doors and Panels.

6. Section 08710 – Door Hardware.

7. Section 09290 – Gypsum Board.

8. Section 09900 – Paints and Coatings.

9. Section 26000 – Electrical.

1.02 REFERENCES for Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. ASTM A 653/A 653M – Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process

B. ASTM A 36 – Standard Specification for Carbon Structural Steel, Hot Rolled Steel

C. ASTM A 123 – Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products

D. ASTM A 312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

E. ASTM A 240 – Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications

F. ASTM A 276 – Standard Specification for Stainless Steel Bars and Shapes

G. ASTM B 209 – Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate

H. ASTM B 221 – Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes

1.03 SUBMITTALS for Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. Submit under provisions of Section 01300.

B. Product Data: Provide manufacturer’s standard details and catalog data. Provide installation instructions.

C. Shop Drawings: Furnish shop drawings for architect’s approval. Include elevation, sections, and details indicating dimensions, materials, finishes, conditions for anchorage and support of each door.

D. Submit manufacturer’s recommended operation, troubleshooting, and maintenance instructions.

1.04 QUALITY ASSURANCE

A. Manufacturer: Rolling doors shall be manufactured by a firm with a minimum of five years experience.

B. Single-Source Responsibility: Manufacturer shall provide doors, tracks, motors, and accessories for each type of door. Secondary components shall come from a source acceptable to the manufacturer of the primary components.

1.05 DELIVERY, STORAGE, AND HANDLING of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. Deliver materials in original packaging supplied by manufacturer with intact labels. Store materials away from harmful environmental conditions and construction.

1.06 WARRANTY

A. Door Warranty: Provide one year written warranty from date of installation against deficiencies due to defects in materials or workmanship. Installer agrees to repair or replace any defects in materials or workmanship.

B. Project Warranty: Refer to Conditions of the Contract for project warranty provisions.

PART 2 – PRODUCTS

2.01 MANUFACTURER of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. Manufacturer: Alpine Overhead Doors, Inc.; 8 Hulse Road Suite 1S, East Setauket, NY 11733. Telephone 800-257-4634 or 631-473-9300. Fax 631-642-0800.

B. Model: HIGH PERFORMANCE INSUL-SOUND® Sound Retardant Rolling Service Door

2.02 MATERIALS for Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. Curtain:

1. Slats:

a) Front: 2 ¾” flat [2 ¾” perforated] slats.

b) Provide [Fabric] [Plastic] sheet to add insulation and prevent metal parts from touching.

c) Plastic back cover. [Fill with insulation]

d) [Insulation]: Polyurethane

i) Flame Spread = 15, Smoke Developed = 85 as per ASTM E 84

e) Metal back cover.

f) Slat/Back Cover Material:

i) Galvanized steel, G90 coating exterior (G60 interior), Structural Quality Grade C,
as per ASTM A 653/ A 653 M

Finish: Galvanized [Powder coated] [Baked enamel] (Minimum coating
conforming with Coating Designation G-01 is required)

– OR –

ii) ASTM 240 Stainless steel 300 series

Finish: [Mill finish #2B] [#4 satin finish]

– OR –

iii) Aluminum

Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]

a) Gauge: (Per manufacturer’s standard)

i) Galvanized/Stainless: Minimum 22 gauge as manufacturer standard [20, 18, 16, gauge].

ii) Aluminum: Minimum 0.050” thick.

2. Endlocks and Windlocks (as required):

a) Ductile cast iron, hot-dip galvanized endlocks riveted (solid rivets, minimum 3/16” thick) to each end of alternate slats to prevent lateral movement and to limit slat deflection and bending stress. [Windlocks are dependent on windload and increase resistance to curtain jamming]

3. Bottom Bar of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors: (Match to slat material)

a) Two roll formed steel [aluminum] angles which extend into guides, designed to reinforce curtain bottom. (Size dependent on dimensions per manufacturer’s
standard)

i) Galvanized Steel as per ASTM A 653/ A 653 M

Finish: Gray shop prime [Powder Coated] [Baked Enamel]

– OR –

ii) ASTM 240 Stainless Steel 300 Series

Finish: [Mill finish #2B] [#4 satin finish]

– OR –

iii) Aluminum

Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]

B. Guides of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors:

1. Guides shall be designed using structural angles with a minimum thickness of 3/16”, minimum 1 ¼”slotted connections, and removable bellmouth curtain stops to allow for curtain maintenance without removal of guides. Bellmouth stops shall be flush with guide groove. Guides shall be fastened with minimum 3/8” bolts at minimum 24” o.c.

a) Material:

i) ASTM A 36 Carbon Structural Steel

Finish: Gray shop prime coat [ASTM A 123 Galvanized] [baked enamel paint] [powder coated].

– OR –

ii) ASTM 276 Stainless Steel 300 Series

Finish: [Mill finish #2B] [#4 finish satin]

– OR –

iii) Extruded Aluminum

Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]

C. Door Support Brackets and Mounting Plates:

1. Steel plate not less than 1/4” thick. Provide ball bearings at rotating support points. Bolt plates to wall mounting angles with minimum 1/2″ fasteners. Plate supports counterbalance assembly and forms end enclosures.

a) Material of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors:

i) ASTM A 36 Carbon Steel:

Finish: Gray shop prime coat [ASTM A 123 Galvanized] [Baked enamel paint] [Powder coated].

– OR –

ii) ASTM 240 Stainless Steel 300 Series

Finish: [Mill Finish #2B]

b) [Stop Lock bearing]: To prevent door from free falling in the event drive operation fails.

D. Counterbalance Assembly: Torsion

1. Counterbalance assembly: Steel pipe barrel of a size capable of carrying a curtain load with a maximum deflection of 0.03” per foot of door width. Heat-treated helical torsion springs encased in a steel pipe and designed to include an overload factor of 25% to ensure minimum effort to operate. Sealed and prelubricated high speed ball bearing at rotating support points. Torsion spring charge wheel for applying spring torque and for future adjustments.

a) Material of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors:

i) ASTM A 36 Carbon Structural Steel

Finish: Gray shop prime coat [A 123 Hot-Dip Galvanized]

– OR –

ii) A 312 Stainless Steel 300 Series

Finish: Mill finish

b) Life Cycle: High Cycle springs designed to satisfy 10m through 400m life cycles. Consult engineering if height exceeds width for any cycle above 20m. (Cycle defined as one time opening and closing of door)

E. Hood:

1. 24 gauge steel [.040” aluminum]. Formed to fit the contour of the end brackets with reinforced top and bottom edges. Provide support bracing for doors wider than 20 feet at every 10 feet to prevent excessive sag. Fastened to end brackets.

2. Shape: Hexagon [square] [round]

3. Material:

a) Galvanized Steel as per ASTM A 653/ A 653 M

Finish: [Baked enamel paint] [Powder coated]

– OR –

b) ASTM 240 Stainless Steel 300 Series:

Finish: [Mill finish #2B] [#4 satin finish]

– OR –

c) Aluminum

Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]

4. [Fascia]: Galvanized [Stainless Steel] [Aluminum], provided where areas behind door
hood are open. Materials and finish same as hood.

F. Locking of the Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors:

1. Slide locks: Provide padlockable slide locks for latching and locking door on coil side bottom bar at each jamb extending into slots in guides. [Cylinder Locks] (Electric Interlocks recommended with motorized doors only)

2. Manual chain hoist: Provide padlockable chain keeper on guide.

G. Weatherstripping:

1. Bottom Bar: Neoprene astragal.

2. Guides: Snap-on brush seal.

3. Hood: Neoprene baffle.

4. [Lintel baffle]

2.03 OPERATION of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors:

A. Opening/Closing: Manual push-up [Manual hand chain] [Manual hand crank] [Motor Operator].

B. [Manual hand chain]:

1. Provide chain hoist operator with endless steel chain, chain pocket wheel and guard, geared reduction unit, and chain keeper secured to guide.

C. [Manual hand crank]:

1. Provide crank hoist operator including crank gear box, steel crank drive shaft and geared reduction unit. Fabricate gear box to completely enclose operating mechanism and be oil-tight.

D. [Motor Operators]:

1. Choose ONE:

a) Medium-Duty, Alpine® Model Redi-Hoist™ driven by efficient V-belt primary
drive with chain/sprocket secondary. Maximum ½ hp. For use on doors up to 10’ x 10’.

– OR –

b) Industrial-Duty, Alpine® Model Redi-Lift™ driven by heavy-duty V-belt with
chain/sprocket secondary reduction. Optional auxiliary chain hoist. Maximum 1 hp. For use on doors up to 12’ x 12’.

– OR –

c) Heavy Industrial-Duty, Alpine® Model Redi-Master™ driven by heavy-duty worm gear in oil bath reduction. Standard auxiliary chain hoist. Standard ½ hp (maximum 3 hp)

– OR –

d) Redi-Tube® Tubular Motor with Built-In Manual Handcrank Overdrive. Auxiliary chain hoist not available. For use on doors up to 10’ x 8’.

– OR –

e) Redi-Midget® Gear Reduced Jackshaft Door Operator.

2. [Sensing Edges] (For double angle bottom bar): For motorized doors, sensing edges allow door to go up in case of obstruction. [Pneumatic Edge] [Electric Edge] [Wireless Edge].

a) Colors: Gray [Yellow] [Black] [White] [Yellow with black stripes]

2.04 Mounting of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors:

1. Interior face mounted on prepared opening.

2. Interior mounted between jambs and under lintel in a prepared opening.

3. Exterior face mounted on prepared opening.

PART 3 – EXECUTION

3.01 EXAMINATION

A. Verify that dimensions are correct and project conditions are in accordance with manufacturer’s installation instructions; do not proceed with installation until unacceptable conditions have been corrected.

3.02 INSTALLATION of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. Install units in accordance with manufacturer’s instructions.

B. Ensure that units are installed plumb and true, free of warp or twist, and within tolerances specified by manufacturer for smooth operation.

3.03 FIELD TESTING

A. Test doors for regular operation.

3.04 DEMONSTRATION of Side Coiling Doors, Side Coiling Grilles, Side Wall Doors, Rolling Doors

A. Instruct the Owner’s personnel in correct operation and maintenance of units.

3.05 ADJUST AND CLEAN

A. Clean units in accordance with manufacturer’s instructions.

B. Restore slight blemishes in finishes in accordance with manufacturer’s instructions to match original finish. Remove and provide new units where repairs are not acceptable to the Architect.

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine introduces a sound-resistant door with Insul-Sound® insulated slats. This new slat for these rolling soundproof doors provide for a full thermal break between the inside and outside of the slat. The back of the sound resistant door is made of hard, weather resistant PVC. The inside of the rolling sound doors provide a full sound barrier for thermal protection. The front slat is available in 22, 20, and 18 gauge steel, or B.S. Aluminum with a variety of finishes that are perfect as room dividers or as replacements for side wall doors.

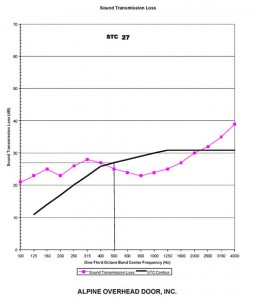

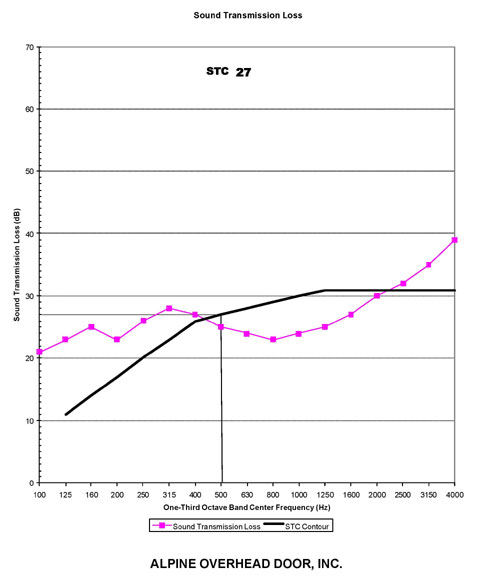

Alpine’s patented Insul-Sound® design allows for the manufacturing of a rolling sound resistant door that is unmatched in the industry and can be used in place of side wall doors or as room dividers.Soundproof Doors, Sound Resistant Door, Room Dividers, Insul-Sound

Alpine Insul-Sound® soundproof door curtains consist of 2- 3/4″ roll formed flat slats with snapped on PVC.  Slats are available in galvanized,  stainless steel, or aluminum in gauges from 22 gauge to 16 gauge.  These insulated core backing doors can be hand-crank, hand-chain or sound resistant door motor operated.  All types of operation can be adapted to specific conditions. Locking devices are available options on many soundproof doors including room dividers and doors that can replace side wall doors.

Soundproof Doors, Sound Resistant Door, Room Dividers, Insul-Sound

IPB-S Insulated Snap on Slat felt center

<Soundproof Doors, Sound Resistant Door, Room Dividers, Insul-Sound

Double Angle with Rubber Astragal

Soundproof Doors, Sound Resistant Door, Room Dividers, Insul-Sound

Structural Guide with Weather Strip
