Alpine® Split-Frame® Integral Frame Doors

Quality Split Borrow Light Frame And Rolling Counter Shutters

Product Features

  • Integral frame doors accent and enhance building decor
  • Security gate counter shutters are available in a variety of finishes
  • This door fits into new & existing openings up to 12′ X 8′ maximum
  • Service shutters are customized to fit your wall thickness
  • Ideal for cafeterias, health care facilities, schools & universities, etc.
Request A Quote

APPLICATION USE
Office Window’s, Integral Shutter, Counter Shutter, Healthcare Facilities and Hospitals, Security Gate Counter, Service Shutters, Interior Doors, Integral Frame Doors.

BOTTOM BARS
Brass, Copper, Galvanized, Aluminum, Stainless Steel, Hot Rolled Steel, Powder Coated, Weather Strip, Brush/Smoke Seal, Pneumatic Edge, Electric Edge, Wireless Edge, Double Angle, Tubular, Slide Lock.

BRACKET PLATES
These Hollow Metal Frames have Bracket Plates that can be Brass, Copper, Hot Rolled A36, Stainless Steel, Galvanized, Powder Coated, Stop Lock Bearing, Internal Charge, Charge Wheel, Motor Prep., Chain Gearing, Square Bracket, Single Gear Reducer.

COUNTERBALANCE ASSEMBLY  for the Security Gate Counter, Service Shutters, Integral Frame Doors or Hollow Metal Shutters
The Counterbalance Assembly of this Stainless Steel Counter and Security Gate Counter can be Hot Rolled A36, Galvanized, Stainless Steel, Torsion Spring, Life Cycle 17.5 to 400M, Welded Tabs, Taped Holes, Redi-Tube Motor, Thru-Shaft Push-up, Inside Charge, Lock Shaft Collar, Keyed, Bolted.

CURTAIN OPTIONS
Curtains for these Interior Doors and Hollow Metal Frames can be Brass, Copper, Galvanized, Stainless Steel, Aluminum, Galvalume, Prime Painted Galvanized, Powder Coated, Fenestrated, Mail Slot, Straight Grille, Brick Grille, Thumb Turn Panel, Stamped Endlock, Cast Endlocks, Windlock Option.

GUIDE MATERIAL
This door uses Brass, Copper, Hot Rolled A36, Stainless Steel, Galvanized Steel, Powder Coated, “G” Shutter Guide, Electric Interlock,

HOOD/COVER  on the Security Gate Counter, Service Shutters, Integral Frame Doors or Hollow Metal Shutters
Stainless Steel Counter hood/cover can be Brass, Copper, Galvanized, Stainless Steel, Aluminum, Galvalume, Prime Painted, Powder Coated, Back Fascia, Tension Cover, Operator Cover, Square, Side End Cap, Motor Cover, F.O.C. Cover.

MATERIAL STYLE
Security Gate Counter and Integral Frame Doors can be 22 Gauge, 20 Gauge.

OPERATION OF DOOR
Service Shutters and Interior Doors can be Push-up, Motor, Hand Crank, Redi-Midget, Redi-Tube.

Alpine’s Engineering team will help you determine the exact integral frame doors that will meet your specifications and requirements for your security gate counter or service shutters. Alpine will guide you through every step with your hollow metal shutters. Alpine will design service shutters that will bring years of usage.

Alpine’s integral frame doors are tough enough to stand up to a lot of usage. These security gate counter and hollow metal shutters are built to last. Call Alpine today to find out which service shutters are right for your building’s door.

Click Here for UL Labeled Smoke and Draft Control Assemblies

Contact us today to find out which Alpine® solution is right for you!

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine® Split-Frame® Security Gate Counter

Split Borrow Light Frame Counter Shutters

Below you will be able to download details for split integral frame doors. The details for the hollow metal frames are available as a PDF. Click here to request a quote. AutoCAD drawing details may be selected on the CAD FILES option to the right. The AutoCAD drawing details for this security gate counter shutters comply with 08360, 08400 & 08330 construction specifications. You’ll find useful information regarding the operation of your integral frame doors, including both manual and motor operation.

Alpine, direct manufacturer, Integral Split-Frame® is a security gate counter shutter that complies with the 08330 construction spec. Alpine Split Frame® hollow metal frames are manufactured and designed at the factory for a seamless, custom appearance. Integral frame doors can be fully assembled prior to pick-up or delivery to the project site. This security gate counter shutter features our special Split Frame® design for quick installation into new walls or existing openings with a finished buck frame edge. They are ideal for cafeterias, health care facilities, schools & universities and many other industrial and commercial applications. For double doors or warehouse and dock doors, please select the item from the product index. Alpine is the direct manufacturer and offers a wide variety of integral frame doors.

To download Security Gate Counter, Hollow Metal Frames, Integral Frame Doors details (PDF), please click below.

Get Adobe Reader for Security Gate Counter, Hollow Metal Frames, Integral Frame Doors

Apine’s Engineering team will help you determine the exact integral frame doors that will meet your specifications and requirements. Alpine will guide you through every step with your security gate counter shutter. Alpine, as the direct manufacturer, will design hollow metal frames doors that will bring years of usage.

Alpine’s Security gate counter shutter is tough enough to stand up to alot of usage. The integral frame doors are built to last. Call Alpine today to learn more about these hollow metal frames and integral frame doors!

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine® Split-Frame® Steel Doors

Split Borrow Light Frame Rolling Counter Shutters

Download specifications for customizing your own options of the design and construction of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters. Specifications are available in PDF or Microsoft Word format.

To download specifications, please click below.

3 Part Specifications (PDF) Adobe Acrobat Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters Get Adobe Reader for Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
3 Part Specifications (DOC) Microsoft Word Download 3 Part Specifications Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters

Model SPLIT FRAME®
Curved or Flat Slats
Rolling Shutters

NOTE: For specifications for Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters, architects must choose from a variety of options. The standard choice will be shown first in plain text followed by the options shown in [brackets] (Example “Finish: Galvanized [Powder coated] [Baked enamel]”). The specifier must make the appropriate choices for the steel frames and delete the others (Example: “Finish: Powder coated”).

GENERAL

1.01 SUMMARY of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. This section includes: [Manual] or [Electric] operated Integral Frame Counter Shutter.
1. Cycle life: Design doors of standard construction for normal use of 10,000 cycles standard [up to 400,000 cycles].
2. Design doors to fit a wall thickness of minimum 4”.
B. Related Sections: Related to this section, but not limited to, the following (based on Master Format 2004):
1. Section 01660 – Product Storage and Handling Requirements.
2. Section 04220 – Concrete Unit Masonry.
3. Section 05120 – Structural Steel.
4. Section 06100 – Rough Carpentry.
5. Section 08310 – Access Doors and Panels.
6. Section 08710 – Door Hardware.
7. Section 09290 – Gypsum Board.
8. Section 09900 – Paints and Coatings.
9. Section 26000 – Electrical.

1.02 REFERENCES for Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. ASTM A 653/A 653M – Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
B. ASTM A 36 – Standard Specification for Carbon Structural Steel, Hot Rolled Steel
C. ASTM A 123 – Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products
D. ASTM A 312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
E. ASTM A 240 – Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
F. ASTM A 276 – Standard Specification for Stainless Steel Bars and Shapes
G. ASTM B 209 – Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate
H. ASTM B 221 – Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes

1.03 SUBMITTALS
A. Submit under provisions of Section 01300.
B. Product Data: Provide manufacturer’s standard details and catalog data. Provide installation instructions.
C. Shop Drawings: Furnish shop drawings for architect’s approval. Include elevation, sections, and details indicating dimensions, materials, finishes, conditions for anchorage and support of each door.
D. Submit manufacturer’s recommended operation, troubleshooting, and maintenance instructions.

1.04 QUALITY ASSURANCE of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. Manufacturer: Rolling doors shall be manufactured by a firm with a minimum of five years experience.
B. Single-Source Responsibility: Manufacturer shall provide doors, tracks, motors, and accessories for each type of door. Secondary components shall come from a source acceptable to the manufacturer of the primary components.

1.05 DELIVERY, STORAGE, AND HANDLING
A. Deliver materials in original packaging supplied by manufacturer with intact labels. Store materials away from harmful environmental conditions and construction.

1.06 WARRANTY of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. Door Warranty: Provide one year written warranty from date of installation against deficiencies due to defects in materials or workmanship. Installer agrees to repair or replace any defects in materials or workmanship.
B. Project Warranty: Refer to Conditions of the Contract for project warranty provisions.

PART 2 – PRODUCTS

2.01 MANUFACTURER of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. Manufacturer: Alpine Overhead Doors, Inc.; 8 Hulse Road Suite 1S, East Setauket, NY 11733. Telephone 800-257-4634 or 631-473-9300. Fax 631-642-0800.
B. Model: SPLIT-FRAME® Rolling Counter-Shutter

2.02 MATERIALS
A. Curtain:
1. Slats: Constructed of interlocking, roll-formed 1 ¼” baby flat [2” baby curve] [1 ¼” perforated baby flat] [2” perforated baby curve] slats.
a) Material:
i) Galvanized steel, G90 coating exterior (G60 interior), Structural Quality Grade C, as per ASTM A 653/ A 653 M
Finish: Galvanized [Powder coated] [Baked enamel] (Minimum coating conforming with Coating Designation G-01 is required)
– OR –
ii) ASTM 240 Stainless steel 300 series
Finish: [Mill finish #2B] [#4 satin finish] – OR –
iii) Aluminum
Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized] b) Gauge: (Per manufacturer’s standard)
i) Galvanized/Stainless: Minimum 22 gauge as manufacturer standard [20, 18, 16 gauge].
ii) Aluminum: Minimum 0.040” thick.
2. Endlocks:
a) Stamped, hot-dipped, galvanized endlocks riveted (solid rivets, minimum 3/16” thick) to each end of alternate slats to prevent lateral movement and to limit slat deflection and bending stress.
3. Bottom Bar: (Size dependent on dimensions per manufacturer’s standard)
a) Two roll formed steel angles of minimum 1”x 1 1/2”x 1/8”, designed to reinforce curtain bottom.
i) Galvanized Steel as per ASTM A 653/ A 653 M
Finish: Gray shop prime [Powder Coated] [Baked Enamel] – OR –
ii) ASTM 240 Stainless Steel 300 Series
Finish: [Mill finish #2B] [#4 satin finish] – OR –
b) Double Angle Extruded Aluminum Bottom Bar
i) Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized] – OR –
c) Tubular Bottom Bar
i) Galvanized Steel as per ASTM A 653/ A 653 M (only available up to 8’)
Finish: Gray shop prime [Powder Coated] [Baked Enamel] – OR –
ii) ASTM 240 Stainless Steel 300 Series (only available up to 8’)
Finish: [Mill finish #2B] [#4 satin finish] – OR –
iii) Extruded Aluminum
Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized] d) [Weather Stripping]: Neoprene astragal (On double angle bars).
B. Integral Frame of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters:
1. 16 gauge steel frame with guides incorporated into jamb design, reinforced by 12 gauge mounting structure (Bolt with ¼” bolts at 12” o.c.). Built to fit ____” wall thickness. [Door sill plate of 14 gauge steel to match door frame]. Can be built solid for walls under construction or as split-frame to fit into finished spaces.
a) Material:
i) Galvanized Steel as per ASTM A 653/ A 653 M
Finish: Gray shop prime [Powder Coated] [Baked Enamel] – OR –
ii) ASTM 240 Stainless Steel 300 Series
Finish: [Mill finish #2B] [#4 satin finish] C. Door Support Brackets and Mounting Plates:
1. Minimum 12 gauge steel plate. Provide ball bearings at rotating support points. Bolt plates to mounting structures with minimum 1/4″ fasteners. Plate supports counterbalance assembly and forms end closures.
a) Material:
i) ASTM A 36 Carbon Steel:
Finish: Gray shop prime coat [ASTM A 123 Galvanized] [Baked enamel paint] [Powder coated].
– OR –
ii) ASTM 240 Stainless Steel 300 Series
Finish: [Mill Finish #2B] b) [Stop Lock bearing]: To prevent door from free falling in the event drive operation fails.
D. Counterbalance Assembly: Torsion
1. Counterbalance assembly: Steel pipe barrel of a size capable of carrying a curtain load with a maximum deflection of 0.03” per foot of door width. Heat-treated helical torsion springs encased in a steel pipe and designed to include an overload factor of 25% to ensure minimum effort to operate. Sealed and prelubricated high speed ball bearing at rotating support points. Torsion spring charge wheel for applying spring torque and for future adjustments.
a) Material:
i) ASTM A 36 Carbon Structural Steel
Finish: Gray shop prime coat [A 123 Hot-Dip Galvanized] – OR –
ii) A 312 Stainless Steel 300 Series
Finish: Mill finish
b) Life Cycle: High Cycle springs designed to satisfy 10m through 400m life cycles. Consult engineering if height exceeds width for any cycle above 20m. (Cycle defined as one time opening and closing of door)
E. Hood For Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters:
1. 16 gauge steel formed to fit the contour of the end brackets with reinforced top and bottom edges. Fasten to end brackets with #10 sheet metal screws.
2. Shape: Square
3. Material:
a) Galvanized Steel as per ASTM A 653/ A 653 M
Finish: [Baked enamel paint] [Powder coated] – OR –
b) ASTM 240 Stainless Steel 300 Series:
Finish: [Mill finish #2B] [#4 satin finish] 4. [Fascia]: Galvanized [Stainless steel] provided where areas behind door hood are open. Materials and finish same as hood.
F. Locking:
1. Provide padlockable slide locks for latching and locking door on coil side bottom bar at each jamb extending into slots in guides. (Electric Interlocks recommended with motorized doors only)
2. [Cylinder Locks]: Only available on tubular bottom bars. Operated from coil [fascia][both] side(s). [Cabinet Style] [Masterkeyable]

2.03 OPERATION:
A. Opening/Closing: Manual push-up [Manual hand crank] [Motor Operator].
B. [Manual hand crank]:
1. Provide crank hoist operator including crank gear box, steel crank drive shaft and geared reduction unit. Fabricate gear box to completely enclose operating mechanism and be oil-tight.
C. [Motor Operators]:
1. Choose ONE:
a) Redi-Midget® Gear Reduced Jackshaft Door Operator. (Standard)
– OR –
b) Redi-Tube® Tubular Motor with Built-In Manual Handcrank Overdrive. Auxiliary chain hoist not available. For use on doors up to 10’ x 8’.
2. [Sensing Edges] (For double angle bottom bar): For motorized doors, sensing edges allow door to go up in case of obstruction. [Pneumatic Edge] [Electric Edge] [Wireless Edge].
a) Colors: Gray [Yellow] [Black] [White] [Yellow with black stripes] 2.04 Mounting:
1. Built-in for walls under construction
2. Slip-in for finished walls.

PART 3 – EXECUTION

3.01 EXAMINATION of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. Verify that dimensions are correct and project conditions are in accordance with manufacturer’s installation instructions; do not proceed with installation until unacceptable conditions have been corrected.

3.02 INSTALLATION
A. Install units in accordance with manufacturer’s instructions.
B. Ensure that units are installed plumb and true, free of warp or twist, and within tolerances specified by manufacturer for smooth operation.
C. Preparation for opening and installation of fire door to be in strict compliance with NPFA-80.

3.03 FIELD TESTING OF STEEL FRAMES
A. Test doors for regular operation.

3.04 DEMONSTRATION of Steel Doors, Steel Frames, Service Shutters, Rolling Doors and Rolling Shutters
A. Instruct the Owner’s personnel in correct operation and maintenance of units.

3.05 ADJUST AND CLEAN
A. Clean units in accordance with manufacturer’s instructions.
B. Restore slight blemishes in finishes in accordance with manufacturer’s instructions to match original finish. Remove and provide new units where repairs are not acceptable to the Architect.

Click Here for UL Labeled Smoke and Draft Control Assemblies

Contact us today to find out which Alpine® solution is right for you!

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Breakthrough Design for Easy Installation!

Alpine Split Frame® service shutters are manufactured and designed at the factory for a seamless, custom appearance without requiring door assembly in the field. This borrowed light security gate counter features our special Split Frame® design for quick installation into new walls or existing openings with a finished buck frame edge. Built-in mounted units wrap around the wall and are installed while the wall is being constructed. Hollow metal units can be set into finished walls. No costly, time-consuming finishing with sheet rock, masonry or carpentry is needed with these Integral frame doors. This door is Available up to 12′ x 8′ or custom built to your specifications. Finishes for security gate counter shutters include stainless steel or powder-coated to match any design scheme.

Additional Benefits:

  • Alpine’s Security Gate Counter, Service Shutters, Integral Frame Doors or Hollow Metal Shutters can be fully assembled prior to pick-up or delivery to the project site. Ready for placement into the wall opening.
  • Stainless steel counter shutters are a custom looking, finished product with high quality design.
Security Gate Counter, Service Shutters, Integral Frame Doors, Hollow Metal

1 1/4 Flat or 2″ Curved Slat

Security Gate Counter, Service Shutters, Integral Frame Doors, Hollow Metal

Roll Formed Double Angle Bottom Bar

Security Gate Counter, Service Shutters, Integral Frame Doors, Hollow Metal

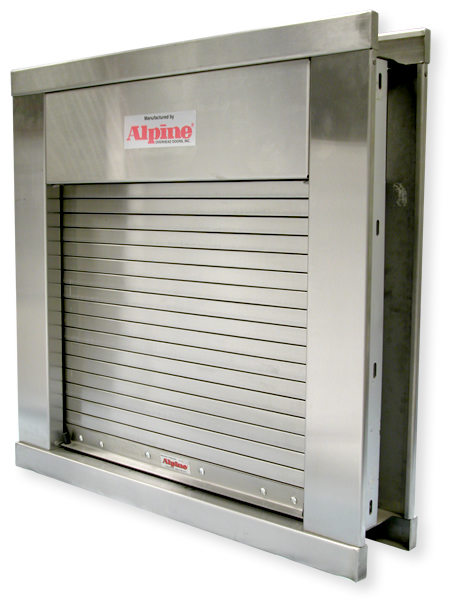

Integral Frame
