Dawn 3" Door - Security Mall Doors

Product Features

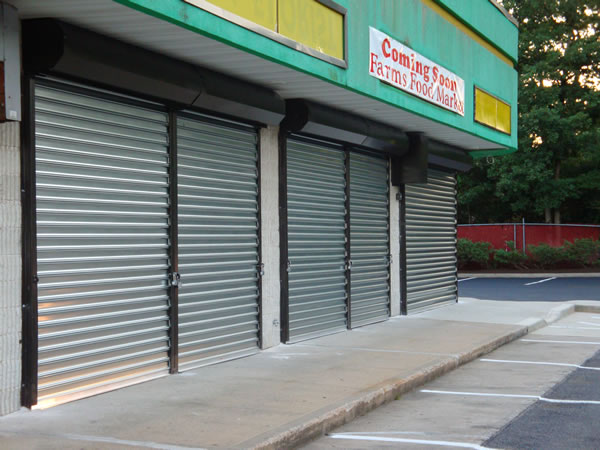

  • Mall doors are great for store gates, warehouse entrances and indoor/outdoor flea markets.
  • This mall door incorporates a 3″ interlocking curve slat design.
  • The Dawn 3” Door® consists of a flat blue spring steel wrapped around a 2″ pipe shaft, mounted to a spring box
  • Our mall doors are built in accordance with the requirements specified by Underwriters Laboratories Inc

Alpine’s mall doors are very practical for use in loading docks and freight entrance openings, warehouse doors, power plants and water treatment facilities, industrial and commercial side and rear entrances, storage containers, and window protection.

Functional Benefits

  • Alpine Dawn 3″ Doors add additional strength to curtain assemblies. They have heavier pounds per square foot for higher wind loads with windlocks.
  • They have a tighter corrugated slat for more protection.
  • All operators can be adapted to specific conditions.
  • Slide lock or pin locking mechanisms can be provided depending on the type of door operation.

The Alpine Advantage and Benefit

  1. Alpine Dawn 3” Doors are designed for easy operation and are trouble free with minimal maintenance required.
  2. After 42 years in business, Alpine doors have been proven reliable for use on thousands of installations in both Commercial and Business locations.  Both Alpine’s quality and workmanship is well known throughout the door industry. Our hands-on approach to every job ensures customer satisfaction.
  3. Made-to-Order manufacturing process. Alpine builds your product to the exact size, specifications and requirements.
  4. All of our products are constructed to have both a rigid and compact design, which provides for a more structural grade product while reducing overhead space and obstruction.
  5. Alpine builds trust by providing our products with a one year warranty on material and workmanship. Also, we offer optional five-year prorated warranties.
  6. We are an ISO 9001:2015 registered firm which ensures that our products are built with strict quality control you can count on.

Installation

  • Mall doors as manufactured by Alpine Overhead Doors, Inc.
  • Opening preparation, miscellaneous or structural metal work, access doors, finish or field painting, field electrical wiring, wire, conduit, fuses and disconnect switches are in the Scope of Work of other divisions or trademarks.

CURTAIN
Constructed of interlocking, 22 gauge, 3” Curved Galvanized steel slats
Option: 3” Curved Steel-Vision® slat with reinforcement  plate and standard endlocks
Finish Option: Choice of 188 ExoShield™ powder coat colors.
> Click here for available Powder Coating colors

BRACKETS
Standard Gray ExoShield™ powder coated stamped brackets consisting of 14 gauge steel. Bracket is 15” Hexagon shaped.

GUIDES
Alpine’s standard Grey ExoShield powder coated guides are 2 1/2” roll formed consisting of 14 gauge steel

Finish Option: Choice of 188 ExoShield™ powder coat colors.

SPRING COUNTERBALANCE
Consist of a flat blue steel spring wrapped around a 2” pipe shaft and mounted into an 8” spring box. Hot rolled A36.

HOODS – GALVANIZED
Hoods are made from 22 gauge galvanized steel.
Finish Options: Choice of 188 ExoShield™ powder coated colors.

LOCKING DEVICES
Included with a hasp-pin type lock. Optional slide locks.

Manual push-up, with option for Redi-Central motor operator. The maximum size for manual push-up operations on steel doors is 120 square feet (not to exceed 12’ wide). Maximum size door is 12’ wide x 12’ high. Optional motor operator is U.L. Classified for 115V, 60 Hz.

Alpine Motor Operators

The Redi-Central™operator systems are used for the motor operation of Alpine’s Dawn 3″ Door®, Dawn 4″ Door® and Dawn Grille®. Used on store fronts, warehouse entrances, and indoor/outdoor flea markets, the Redi-Central™ coiling door operator combines with our Dawn 4″ Series to offer an economical security door with the convenience of motor operation door openers.
> View Redi-Central Details

ACCESS CONTROLS
Optional control stations are available as Push Button Control Station or Key Control Stations. Special Control Stations are also available.
> Click for Access Control Details

Alpine’s UL listed steel door operator is constructed with the highest quality material and the latest in technical innovation to ensure that each operator exceeds the requirements it is meant to achieve. Alpine is sure to have an electric gate operator that will meet all your individual specifications. Call Alpine today to learn more about the options for these operators, including a metal door motor.

Dawn 3” Door® is a mall door that complies with the 08330 construction spec. Alpine’s mall doors are designed for security and easy operation. Additionally, our mall doors are trouble free with minimal maintenance required. The Dawn 3” Door® has been proven for use on thousands of installations for business and industry. For warehouse and dock doors or insulated doors, please select the item from the product index.

The Dawn 3” Door® mall door AutoCAD drawings and AutoCAD details are for informational purposes. They may change at any time. The CAD detail and CAD drawing reflect the options that are available to the architects and engineers compiling a drawing of the mall door to present to contractors.  The AutoCAD detail and AutoCAD drawing will be updated regularly.

To download PDF drawings please select from links below.

For CAD files, please click here

A. Manual (push-up) operated
1. Face mounted – (PDF) Adobe Acrobat
2. Between Jamb – (PDF) Adobe Acrobat

B. Motor operated
1. Face mounted – (PDF) Adobe Acrobat
2. Between Jamb – (PDF) Adobe Acrobat

The Dawn 3” Door® mall door AutoCAD drawings and AutoCAD details are for informational purposes. They may change at any time. The CAD detail and CAD drawing reflect the options that are available to the architects and engineers compiling a drawing of security shutters to present to contractors. The AutoCAD detail and AutoCAD drawing will be updated regularly.

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or omissions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine® Dawn 3″ Door® Security Mall Doors

Economy Box Spring Service Door

Model DAWN 3 DOOR®
Curved Slats
Mall Doors

> Download 3-Part Specifications (PDF)
> Download 3-Part Specifications (DOC)

NOTE: For Mall door specifications, architects must choose from a variety of options. The standard choice will be shown first in plain text followed by the options shown in [brackets] (Example “Finish: Galvanized [Powder coated] [Baked enamel]”). The specifier must make the appropriate choices and delete the others (Example: “Finish: Powder coated”).

GENERAL

1.01 SUMMARY of Mall Door Specifications
A. This section includes: [Manual] or [Electric] operated Economy Box Spring Door.
1. Cycle life: Design doors of standard construction for use up to 12,000 cycles.
2. Dimensions: To be a manual push-up, door must not exceed 120 ft.²
B. Related Sections: Related to this section, but not limited to, the following (based on Master Format 2004):
1. Section 01660 – Product Storage and Handling Requirements.
2. Section 04220 – Concrete Unit Masonry.
3. Section 05120 – Structural Steel.
4. Section 06100 – Rough Carpentry.
5. Section 08310 – Access Doors and Panels.
6. Section 08710 – Door Hardware.
7. Section 09290 – Gypsum Board.
8. Section 09900 – Paints and Coatings.
9. Section 26000 – Electrical.

1.02 REFERENCES for Mall Door Specifications
A. ASTM A 653/A 653M – Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
B. ASTM A 1018/A 1018M – Standard Specification for Steel, Sheet and Strip, Heavy-Thickness Coils, Hot-Rolled, Carbon, Commercial, Drawing, Structural, High-Strength Low-Alloy, and High-Strength Low-Alloy with Improved Formidability
C. ASTM A 123 – Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products
D. ASTM A 312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
E. ASTM A 240 – Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
F. ASTM A 276 – Standard Specification for Stainless Steel Bars and Shapes
G. ASTM B 209 – Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate
H. ASTM B 221 – Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes

1.03 SUBMITTALS for Mall Door Specifications
A. Submit under provisions of Section 01300.
B. Product Data: Provide manufacturer’s standard details and catalog data. Provide installation instructions.
C. Shop Drawings: Furnish shop drawings for architect’s approval. Include elevation, sections, and details indicating dimensions, materials, finishes, conditions for anchorage and support of each door.
D. Submit manufacturer’s recommended operation, troubleshooting, and maintenance instructions.

1.04 QUALITY ASSURANCE of Mall Door Specifications
A. Manufacturer: Rolling doors shall be manufactured by a firm with a minimum of five years experience.
B. Single-Source Responsibility: Manufacturer shall provide doors, tracks, motors, and accessories for each type of door. Secondary components shall come from a source acceptable to the manufacturer of the primary components.

1.05 DELIVERY, STORAGE, AND HANDLING
A. Deliver materials in original packaging supplied by manufacturer with intact labels. Store materials away from harmful environmental conditions and construction.

1.06 WARRANTY of Mall Doors
A. Door Warranty: Provide one year written warranty from date of installation against deficiencies due to defects in materials or workmanship. Installer agrees to repair or replace any defects in materials or workmanship.
B. Project Warranty: Refer to Conditions of the Contract for project warranty provisions.

PART 2 – PRODUCTS

2.01 MANUFACTURER of Mall Doors
A. Manufacturer: Alpine Overhead Doors, Inc.; 8 Hulse Road Suite 1S, East Setauket, NY 11733. Telephone 800-257-4634 or 631-473-9300. Fax 631-642-0800.
B. Model: DAWN 3 DOOR® Rolling Service Door

2.02 MATERIALS for Mall Doors
A. Curtain:
1. Slats: Constructed of interlocking, roll-formed 3” curve [3” curve perforated] slats. (For grilles, see specs for Dawn Grille)
a) Material:
i) Galvanized steel, G90 coating exterior (G60 interior), Structural Quality Grade C, as per ASTM A 653/ A 653 M
Finish: Galvanized [Powder coated] [Baked enamel] (Minimum coating conforming with Coating Designation G-01 is required)
– OR –
ii) ASTM 240 Stainless steel 300 series
Finish: [Mill finish #2B] [#4 satin finish]
– OR –
iii) Aluminum
Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]
b) Gauge: (Per manufacturer’s standard)
i) Galvanized/Stainless: Minimum 22 gauge as manufacturer standard [20, 18, 16 gauge].
ii) Aluminum: Minimum 0.050” thick.
2. [Vision Lite panels] (for flat slats only): Provide 6” by 1 ¼” oval acrylic panes set into curtain. (Choose number and placement)
3. Endlocks for Mall Security Doors, Riot Door, Mall and Storefront Door Specifications:
a) Stamped, hot-dip galvanized endlocks riveted (solid rivets, minimum 3/8” thick) to each end of alternate slats to prevent lateral movement and to limit slat deflection and bending stress.
4. Bottom Bar: (Size dependent on dimensions per manufacturer’s standard)
a) Extruded aluminum bottom bar
i) Aluminum
Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]
b) [Tubular Aluminum bottom bar]
Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]
B. Guides:
1. Guides shall be roll formed consisting of 13 gauge steel, steel mounting angles, expansion slotted connections, and removable curtain stops to allow for curtain maintenance without removal of guides.
a) Material for Mall Security Doors, Riot Door, Mall and Storefront Door Specifications:
i) ASTM A 1018/A 1018 M Steel
Finish: Gray shop prime coat [ASTM A 123 Galvanized] [baked enamel paint] [powder coated].
C. Door Support Brackets and Mounting Plates:
1. 13 gauge steel stamped brackets, welded to guides. Plate supports counterbalance assembly and forms end enclosures.
a) Materia of Mall Security Doors, Riot Door, Mall and Storefront Door Specifications:
i) ASTM A 1018/A 1018 M Steel:
Finish: Gray shop prime coat [ASTM A 123 Galvanized] [Baked enamel paint] [Powder coated].
D. Counterbalance Assembly: Band Spring
1. Consists of flat blue spring steel wrapped around a 2” pipe shaft and mounted into a spring box.
E. Hood:
1. 24 gauge steel [.040” aluminum]. Formed to fit the contour of the end brackets with reinforced top and bottom edges.
2. Shape: Hexagon [square] [round]
3. Material of Riot Door:
a) Galvanized Steel as per ASTM A 653/ A 653 M
Finish: [Baked enamel paint] [Powder coated]
– OR –
b) ASTM 240 Stainless Steel 300 Series:
Finish: [Mill finish #2B] [#4 satin finish]
– OR –
c) Aluminum
Finish: Mill Finish [Clear anodized] [Bronze anodized] [Black anodized]
4. [Fascia]: Galvanized [Stainless Steel] [Aluminum], provided where areas behind door hood are open. Materials and finish same as hood.
F. Locking:
1. Provide hasps and pins, prepared for padlocks on coil side. [Slide locks]

2.03 OPERATION:
A. Opening/Closing: Manual push-up [Motor Operator].
B. [Motor Operator]:
1. Alpine Redi-Central® 115 V, 60 Hz, single phase motor.

2.04 Mounting:
1. Interior face mounted on prepared opening.
2. Interior mounted between jambs and under lintel in a prepared opening.
3. Exterior face mounted on prepared opening.

PART 3 – EXECUTION

3.01 EXAMINATION of Mall Doors
A. Verify that dimensions are correct and project conditions are in accordance with manufacturer’s installation instructions; do not proceed with installation until unacceptable conditions have been corrected.

3.02 INSTALLATION
A. Install units in accordance with manufacturer’s instructions.
B. Ensure that units are installed plumb and true, free of warp or twist, and within tolerances specified by manufacturer for smooth operation.

3.03 FIELD TESTING of Mall Doors
A. Test doors for regular operation.

3.04 DEMONSTRATION
A. Instruct the Owner’s personnel in correct operation and maintenance of units.

3.05 ADJUST AND CLEAN
A. Clean units in accordance with manufacturer’s instructions.
B. Restore slight blemishes in finishes in accordance with manufacturer’s instructions to match original finish. Remove and provide new units where repairs are not acceptable to the Architect.

Disclaimer: All data provided on this website is to be used for information purposes only, and is subject to change without prior notice. Alpine shall not be liable for technical or editorial errors or ommisions contained herein, nor for direct, incidental, consequential or any other damages resulting from furnishing, performance, or use of this information, even if Alpine Overhead Doors, Inc. has been advised of the possibility of such damages in advance. See the additional disclaimer in our Terms of Use.

Alpine’s mall doors are designed for both security and easy operation. Our mall doors are trouble free, thus minimal maintenance is  required. This mall door has been proven for use on thousands of installations for either business or industry. Alpine Dawn 3″ Door® mall door incorporates a 3″ interlocking curved slat design. This mall door can be either manually or motor operated. The Dawn 3″ Door® includes a 24 gauge hood, which can be either galvanized or paint-primed. Locking choices include Hasp-pin type for use with padlocks, or optional LOC-TITE or slide bolts.

If you own or manage a business with a storefront and are situated in high traffic area or where street shoppers are passing your location, this stainless steel door is for you! Undoubtedly, this mall door will secure your store while still attracting buyers for your products. With a solid mall door, your storefront cannot continuously advertise products while closed. Therefore, we offer you our high-quality mall door with see-through perforated solutions. Contact one of our service representatives who can consult you with your mall door needs.

In addition, you will receive expert advice on roll up steel door products that are proven to work. Most importantly, this allows you to make the right choice. Our products will allow you to showcase your storefronts while protecting your interior assets from break-ins or vandalism.

Without doubt, Alpine is an industry leader that offers clients numerous benefits from both years of experience and manufacturer’s excellence. Additionally, your purchase is backed by a product warranty, which includes glass. Accordingly, one of our mottos is, “If its glass, we’ve got it covered.” We pride ourselves on our high standards and success in protecting storefronts from both vandalism and break-ins. So, our mall doors will help you protect your bottom line and minimize concerns by knowing your storefront is safe and secure.

Our wide range of Exo-Shield powder coat come in an array of shades, colors, and textures, which will further enhance your mall door. The wide variety of options is sure to suit any decor. With this intention, we will complement the aesthetic of any business. Whether your project is big or small, Alpine Overhead Doors has a range of mall doors as well as expertise to provide you with the products and service that you need.
